Describe clinical features, investigations, their complications & management:
- Venous insufficiency
- Venous ulcers
- Arterial ulcers
- Neuropathic ulcers
- Pressure ulcers
- Care of chronic wounds
Chronic ulceration frequently affects the legs, in association with chronic venous sufficiency (45-80%), chronic arterial insufficiency (5-20%), diabetes (15-25%) and or peripheral neuropathy. About 1% of the middle-aged and elderly population is affected by leg ulceration. Ulcers are often precipitated by minor injury.
Take a complete medical history and perform a thorough general examination in patients presenting with chronic leg ulcers. If necessary, investigate by blood tests, vascular blood flow studies and biopsy.
Even when the cause is known, it may be difficult or impossible to correct the underlying defect resulting in persistent or recurrent ulceration. Frequently there are several factors, particularly in diabetics who may have venous, arterial, neuropathic and infective causes.
Chronic venous insufficiency arises from calf muscle pump dysfunction. It is associated with:
- Prior deep venous thrombosis
- Prior cellulitis
- Incompetent (varicose) superficial or communicating veins
- Arterial fistulas
- Neuromuscular dysfunction
- Klinefelter syndrome (XXY karyotype).
High venous pressure results in increased capillary permeability allowing large fibrin molecules to be deposited around the capillaries, which acts as a barrier to diffusion of oxygen and nutrients resulting in ischaemia and necrosis.
Venous insufficiency results in aching, swollen lower legs that feel more comfortable when elevated. Signs include:
- Chronic lymphoedema
- Brawny stippled pigmentation
- Stasis dermatitis (scratched, dry or weeping patches)
- Varicose veins
- Lipodermatosclerosis (firm to hard induration due to fibrosis of dermis and subcutaneous tissue)
- Verrucous epidermis (elephantiasis nostras verrucosa).
Pigmentation due to venous insufficiency
Typical stasis dermatitis
Elephantiasis nostras verrucosa
Prior to ulceration there may be a blue-red patch or atrophie blanche (scarring with prominent tortuous capillaries). A minor injury causes a punched-out ulcer that expands with an irregular brownish border. It may be painless or painful, dry or oozy. The most common site is the medial lower aspect of the calf especially over the malleolus.
Typical venous ulceration
Typical venous ulceration
Atrophie blanche with early ulceration
Close-up of atrophie blanche
Complications of chronic venous ulceration include:
- Wound infection (causing increasing pain) and cellulitis
- Contact irritant dermatitis to exudation and bacterial colonisation
- Contact allergic dermatitis to topical medicaments (identified by patch testing)
- Periostitis, osteomyelitis, osteoporosis and bony ankylosis of ankle.
Skin infection has caused
rapidly expanding ulceration
Irritant dermatitis from
Dermatitis due to
Investigations to delineate superficial and deep incompetent veins include phlebography and Duplex sonography.
Management should include:
- Compression dressings or elasticised stockings to decrease oedema and facilitate venous return
- Avoidance of trauma to affected area
- Injection sclerotherapy and surgery to varicose veins (ligation and cutting of incompetent perforating veins, stripping long and/or short saphenous veins)
- Wet dressings, emollients and topical steroids to dermatitis
- Systemic antibiotics for significant secondary infection
- Debridement of necrotic tissue
- Occlusion with a hydrocolloid dressing.
Arterial insufficiency is most often due to atherosclerosis. Ischaemia and infarction may also be due to vasculitis, chilblains, Raynaud's phenomenon, disseminated intravascular coagulation (DIC), cryoglobulinaemia, hyperviscosity syndrome, septic embolisation, aneurysms, drug-induced necrosis (warfarin, heparin, ergot, intra-arterial injection), connective tissue disease, external compression or entrapment.
Atherosclerosis results in leg ulceration because of acute or chronic ischaemia and/or atheroembolisation of fibrin, platelet and cholesterol debris from a distal source into small vessels of the skin.
Risk factors include:
- Diabetes mellitus (large & small vessel disease)
- Insulin resistance
- Personal or family history of ischaemic heart disease, cerebrovascular disease or peripheral vascular disease.
Lower extremity arterial insufficiency results in pain on exercise (intermittent claudication) and eventually pain at rest, most marked at night. Sudden onset of localised pain and tenderness may indicate embolus, especially if arising postoperatively.
Signs of arterial insufficiency include:
- Cyanosed later pale skin (especially on elevation), often with livedo-pattern vasculature
- Loss of hair
- Shiny thin skin
- Diminished or absent pulses (may be palpable in diabetics with microangiopathy, or when arterial disease is localised due to embolisation)
- Pain relieved by placing the leg in a dependent position.
Arterial ulcers are painful and most often arise over bony prominences such as between the toes or on the heels, following minor trauma. A well-demarcated purple patch progresses to blackened slough or dry gangrene. The slough sheds to reveal a punched out ulcer with a sharp border. It may be very deep exposing tendons.
Athlete's foot predisposes
Painful ulcers on the anterior shin may be caused by uncontrolled hypertension in the absence of occlusion of larger arteries.
Poor tissue perfusion predisposes to infection particularly if there are breaks or fissures such as with athlete's foot (interdigital maceration) or ulceration.
Investigation should include Doppler studies and arteriography. The Ankle Brachial Pressure Index (ABPI) is derived by dividing the Doppler measurement of ankle systolic pressure by the brachial systolic pressure. In the absence of arterial disease the ABPI is below 1. An index of less than 0.8 indicates significant arterial disease.
Management should include:
- Stopping smoking
- Exercise to increase collateral circulation
- Correction of hyperlipidaemia: low fat diet and lipid-lowering medication
- Treatment of hypertension
- Analgesics for ischaemic pain
- Referral to vascular surgeon for angioplasty, endarterectomy, arterial bypass procedures and debridement of necrotic tissue or amputation as needed.
In New Zealand these usually relate to underlying diabetes mellitus so there is also arteriolar ischaemia.
Symptoms of sensory neuropathy include pain, paraesthesia and anaesthesia. Signs include:
- Warm, dry foot with palpable pulses
- Reduced response to light touch and painful stimuli distally.
- Loss of ankle jerk reflex
In response to pressure, the skin of the sole, toe or heel increases in thickness (callus) but with a minor injury breaks down and ulcerates. The most common sites are the soles, metatarsal head, great toe (bunion) or heel. These ulcers are frequently secondarily infected.
Management must include careful attention to removing weight from pressure points (if necessary with plaster cast) and debridement of callus around the ulcer margin.
Skin cancers may arise on the lower legs especially in women who have been habitually sun-exposed. However, chronic ulceration from other causes may also predispose to malignancy, so a biopsy of the ulcer margin is indicated if there is doubt about the diagnosis or in cases where there is failure to heal.
- Squamous cell carcinoma (in situ or invasive)
- Basal cell carcinoma
Basal cell carcinoma
Basal cell carcinoma
Squamous cell carcinoma
Squamous cell carcinoma
The healing edge of an ulcer may also resemble a malignancy clinically and histologically (pseudoepitheliomatous hyperplasia).
Pressure (decubitus) ulcers most often occur over the sacrum (60%), ischial tuberosities and greater trochanter but may also arise on the heel, knee and ankle. They are most often seen in elderly chronically bedridden patients or following injury to the spinal cord. Ischaemic damage and necrosis arises because the dermis and subcutaneous tissue have been compressed for a prolonged period.
Predisposing factors include:
- Diminished sensation
- Chronic debility especially hypoalbuminaemia and anaemia
- Secondary infection, with aerobic or anaerobic organisms.
Pressure ulcers are categorised as follows:
Early: blanching erythema
Stage 1: non-blanching erythema
Stage 2: bullae, necrosis of superficial dermis, shallow ulceration
Stage 3: deep necrosis, full-thickness ulceration
Stage 4: extensive necrosis affecting muscle, bone with undermined border.
Typically the diameter of the surface of the ulcer is less than its base. If sensation is intact, pressure ulcers are very painful.
Management must include repositioning the patient every hour or two, inspection of the skin for breakdown over pressure points. Prophylaxis should include:
- Air mattress to reduce compression
- Skilled nursing
- Clean skin with mild cleansing agent, minimising exposure to incontinence, wound drainage
- Mobilise patients.
Ulcer management should include debridement, wound dressings, flaps and skin grafts and management of infectious complications.
Chronic leg ulceration is less commonly due to the following conditions:
- Infection: b-haemolytic streptococcal &/or staphylococcal ecthyma, chronic herpetic infection, syphilitic gumma, tuberculosis, atypical mycobacteria, leprosy. Swab for gram stain and culture, at low temperature if mycobacterial or fungal disease is considered.
- Artefact or injury: consider pressure factors eg plaster of Paris, ski boot, dermatitis artefacta, injecting drug users.
- Pyoderma gangrenosum: predisposing factors include inflammatory bowel disease and haematological malignancy. The ulcers tend to develop rapidly and are frequently extremely painful. An overhanging bluish ragged edge to a necrotic wound is characteristic.
- Vasculitis: well-defined deep ulcers due to polyarteritis nodosa and leukocytoclastic vasculitis may or may not be accompanied by palpable purpura and signs of associated systemic disease. Check for antineutrophil cytoplasmic antibodies (ANCA).
- Connective tissue disease especially systemic sclerosis and rheumatoid arthritis may cause painful ulcers in the absence of other sides of vasculitis.
- Haematological disease due to haemoglobinopathy or hypercoagulability: sickle cell anaemia, polycythaemia vera and antiphospholipid syndrome.
- Necrobiosis lipoidica results in yellow atrophic and telangiectatic plaques that may ulcerate, most often arising on the shin. Type 1 diabetes is present in 50%.
- Calciphylaxis is associated with chronic renal failure, most often associated with diabetes and hyperparathyroidism. Angulated necrotic ulcers appear on the thighs and calves with surrounding blue-black ischaemia. X-rays demonstrate subcutaneous calcification.
- Hydroxyurea sometimes causes chronic leg ulceration or contributes to delayed healing when ulceration is due to underlying myeloproliferative disease.
These conditions will not be specifically discussed in this module.
Removal of fibrin clot and the corrupt matrix stimulates the accumulation of a competent provisional matrix. A basic principle of treatment is the removal of sloughy, necrotic and devitalized tissue to prevent wound infection and delayed healing. Debridement converts the chronic wound into an acute wound so that it can then progress through the normal stages of healing.
- Surgical debridement
- Medical debridement
- Maggots and larval therapy (these are thought to introduce proteolytic enzymes)
Bed rest short term reduces oedema but is impractical and hazardous long term. The current standard of care for venous ulceration and chronic lymphoedema includes compression therapy, which prevents the increase of venous pressure that arises with dependency and exercise. Compression is contraindicated if there is arterial insufficiency i.e. ABPI less than 0.8 and with caution in diabetes because of microangiopathy.

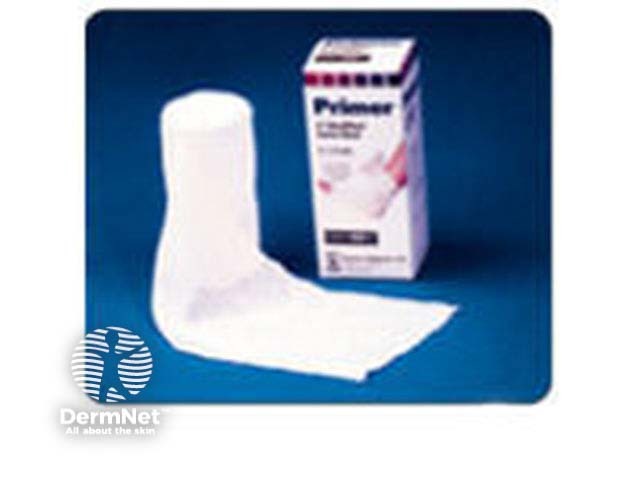

There are several options including 4-layer bandaging, elastic graduated compression hosiery and an Unna boot (gauze bandage impregnated with zinc oxide).
Medical hosiery is available in three different classes with increasing ankle pressure.
- Class I: 14-17mm Hg for superficial or early varices
- Class II: 18-24mm Hg for larger varices, mild oedema and small ulcers
- Class III: 25-35mm Hg for gross varices, postthrombotic leg, gross oedema, ulcers
Stockings are difficult to apply over active ulcers and dressings. Elasticated bandages can be applied with constant tension to provide graduated compression with the highest pressure at the ankle. Padding should be applied in strips over bony prominences to prevent excessive pressure.
Bandages are available with different predetermined levels of compression; light, moderate, high and extra-high performance. The latter are reserved for very large and oedematous limbs. They are usually applied in the form of a spiral with 50% overlap between turns i.e. producing a double layer. A figure-of-8 pattern results in higher pressure. The fatter the leg, the lower the pressure.
Some products have a geometrical design printed at intervals along them. The object is to stretch the bandage aiming to convert a rectangle into a square to produce a sustained and constant level of tension over 40mm Hg.

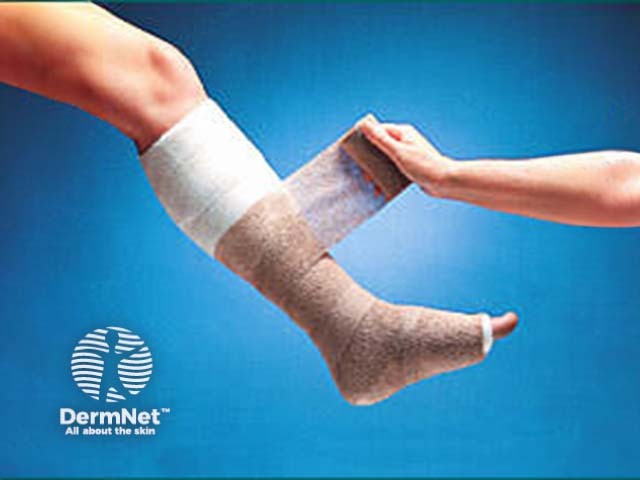

Four-layer bandaging (e.g. Profore™) refers to:
- Crepe bandage
- Elset bandage
- Cohesive bandage

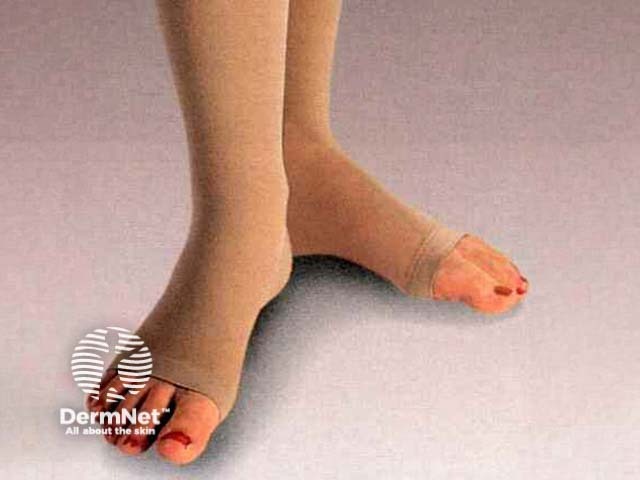

Sigvaris compression stockings
Occlusion aids wound healing by providing a moist environment. Hydrocolloids have proved particularly useful.
Prevent contamination and identify significant local or systemic infection. Treat this with appropriate systemic antibiotics. Topical antibiotics are best avoided because their use results in increased resistance and contact sensitisation.
Accelerate wound healing
Ensure the patient metabolic and nutritional status is adequate. Consider supplementary protein, iron, vitamin-c and zinc if these are deficient.
New products to aid wound healing require further research. They include:
- Growth factors & cytokines
- Hyperbaric oxygen to increase tissue oxygen tension
- Skin graft substitutes
- Connective tissue matrix
- Expanded epidermis
- Epidermal stem cells

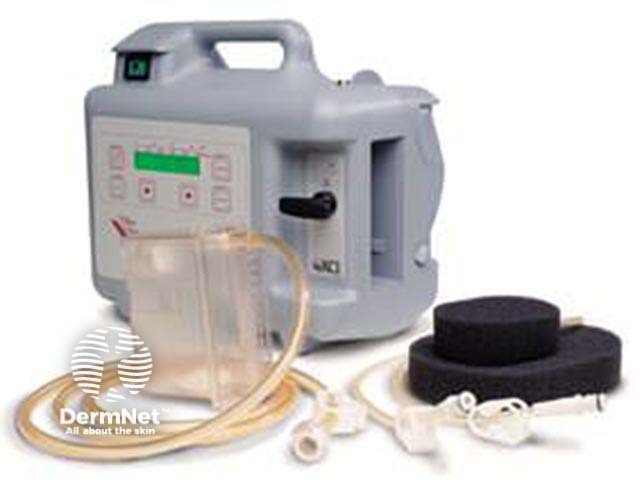

- V.A.C.™ device (vacuum assisted closure).
For those wounds that require more than closure by secondary intention, plastic surgical techniques including pinch grafts and split skin grafts can then be used to provide a functional and effective wound closure.
Discuss the pros and cons of hospital admission in the management of chronic leg ulceration.
